T Slot Rails For Jigs
The Uni-T-Fence is a heavy duty aluminum extrusion up-grade fence for the Delta Uni-fence Table Saw System. The extruded square design allows you to attach or even build many different types of jigs and fixtures. Comes in 36' and 43' lengths, each sold separately. Delta Uni Fence is not included.
Uni-T-Fence Anatomy

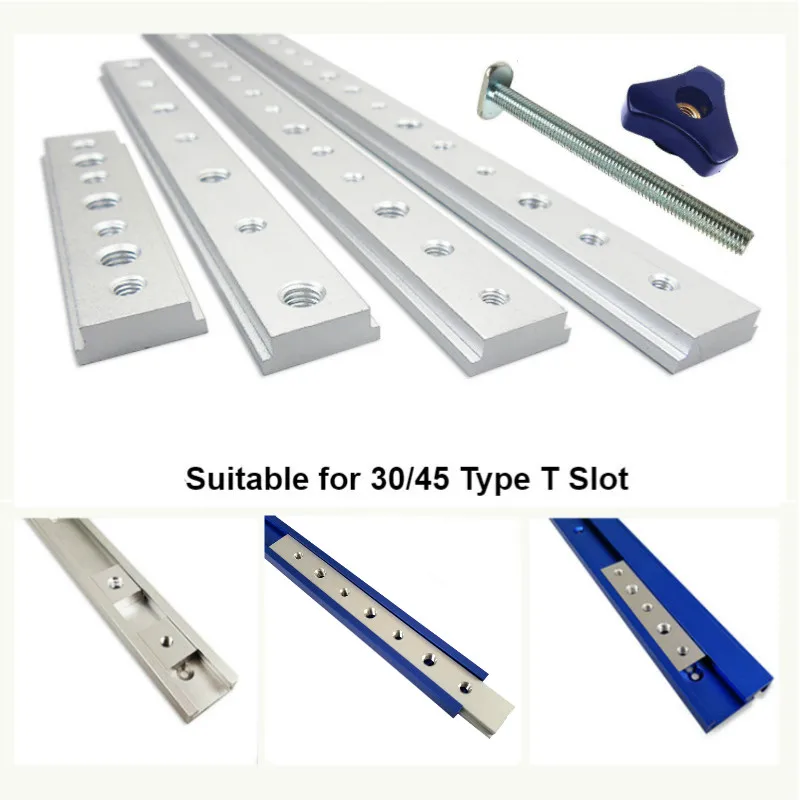

T-track slider for woodworking tool slot fastener. The t-slot slider can be used in conjunction with type 30/45 T-slot guide rails, sliding smoothly, convenient and flexible to use. It is corrosion resistant, easy. Our Universal T-track features a unique 'stacked' T-slot that accepts both 5/16' T-bolts and 1/4' T-bolts, as well as 1/4' Hex-bolts. This means you can use all the hardware and T-track accessories from your old jigs in addition to the newer style hardware. The T-tracks are available in 2 ft, 3 ft, or 4 ft lengths.
Width= 2'
(Doesn't require fence scale adjustment and fence can be swapped in and out with original)
T Track For Woodworking Jigs
These rails have continuous T-slots for attaching fittings. Use this versatile framing to configure machine guards, enclosures, carts, and workstations. T-Slotted Framing Structural Brackets Connect T-slotted rails. The tenon jig has a runner that sites in the miter track and moves right and left. The travel of the tenon is limited by two stops in the miter track. The miter track on my current router table is equipped with a t-track type miter slot, whereas my old router table had a plain miter track. This article discusses my approach to. Routing T-slots in your jigs lets you make use of track clamps instead. They are designed for today’s assembly tables and guide rails. A model made by Bessey sells for $20 at Home Depot. Also called guide-rail clamps, these have a number of critical advantages over toggles.
UHMW Fence Face Opening is exactly 1/2' deep which allows the use of any 1/2' stock (UHMW, plywood or hardwood) to be used as a temporary fence face (burying dado blade in the fence)
'A' T-Slots
The A t-slots are for mounting fence accessories like board buddies, fence featerboards and shop made jigs. The A t-slots take a standard 1/4' hex head bolt or 1/4' t-bolt.
'B' T-Slots
The 'B' t-slot on the fence side is deeper than standard to take 1/4' hex nuts. This makes for easy mounting for the UHMW fence face.
'C' T-Slot
The 'C' t-slot is used to mount the Uni-T-Fence to the standard Delta® Unifence Guide. The slot is 5/16' wide x 1-1/2' high
D' UHMW Fence Face
The UHMW fence face is pre-drilled and mounted to the fence. We us UHMW for the following characteristics:
- The highest abrasion resistance
- Outstanding impact strength even at low temperatures
- Excellent sliding material due to low coefficient of friction
- Self-lubricating
- Easily machined with common woodworking tools
'E' T- Slot
The 'E' t-slot is used to mount the Uni-T-Fence to to other table saw or machine fences. The center line of the 'E' slot is 1-1/64' from the bottom of the Uni-T- Fence and takes a 1/4' hex head nut or bolt head.
Note: All dimensions are approximate
Works with standard 3/4' x 3/8' miter gauges with or without a T-slot. Our track is great for shop built router tables that are not equipped to handle a miter gauge. You can add a miter or sliding fixture to anything that can be routed out to fit the Miter T-Track work bench, table saw extensions, drill press tables, and band saw tables. The miter T-bar slides into the miter track or miter slot in your table saw. The T-bar can be used to make sliding jigs and other fixtures throughout the shop. Add a lock down knob by drilling and tapping the T-bar, there is no end to the possibilities. Use #7785 (1-1/4' Straight bit) to make the groove for the Miter T-Track. T-Track length may vary up to 1/8'.
Miter T-Track and T-BarA #9871 32' T-Track................$16.95
A #1702 (9864) 48' T-Track.....$19.95
B #9872 32' T-Bar....................$16.95
B #9865 48' T-Bar....................$24.95
T Track Woodworking Diy
Miter T-Track and T-Bar SetsSAVE $4.95! 32' Set includes #9871 amd #9872. Regular Price $33.90.
T Slot Framing Rails
#9873..........................$28.95
SAVE $6.95! 48' Set includes #9864 amd #9865. Regular Price $49.90.
Double Aluminum T Slot Rail
#9863..........................$42.95
